Non-Compliant Coronary Catheter

Gambit-NC^®

Controlled Strength and Superb Deliverability for unyielding lesions. Cardio-Elast non-compliant balloon platform with FW-COAT™ dual-mode coating.

View Specifications Contact Us

Nominal Pressure 12 atm

RBP (2.0–4.0 mm) 22 atm

Diameter Range 2.00–5.00 mm

Strength Meets Precision.

Precision-engineered for high-pressure performance in resistant lesions — 11 diameters from 2.00 to 5.00 mm with Cardio-Elast non-compliance and minimal diameter growth from nominal to RBP.

Clinical Evidence

Advantage of
NC Balloon

Evidence 01

Studies have shown that NC balloons improve dilatation effects and lower rates of dissection.¹

Evidence 02

Pre-dilatation & post-dilatation with NC balloons at high pressures have resulted in better scaffolding and stent expansion than SC balloons.²

Dissection Rates¹

0.5%

1.0%

NC balloons show lower dissection rates compared to semi-compliant alternatives.

NC SC

Procedural Success Rates¹

81%

76%

NC balloons achieve higher procedural success in resistant and calcified lesions.

NC SC

Proprietary Coating

FW-COAT^™ Technology

A dual-coating system that works in two distinct zones to maximise both deliverability and guidewire control — without compromise.

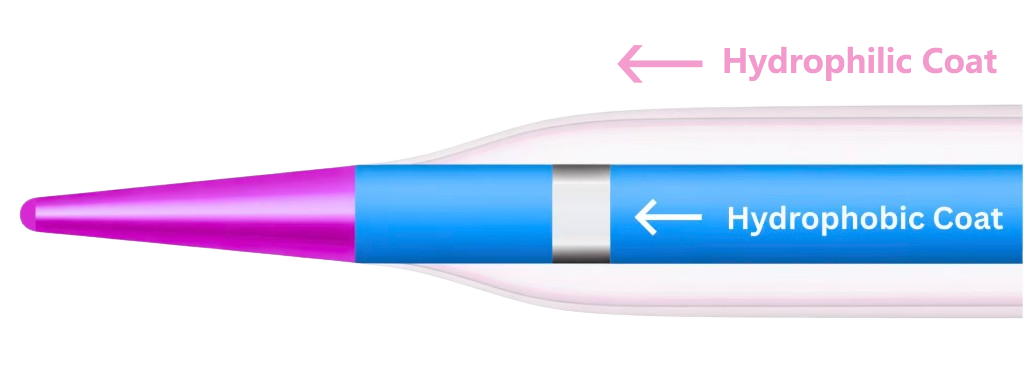

FW-COAT dual-mode coating — hydrophilic outer coat and hydrophobic guidewire lumen coat

Crossability

FW-Coat Hydrophilic Coating

Applied from the distal tip through the balloon zone — activates on contact with blood, creating a near-frictionless surface for crossing tight, calcified, or tortuous stenoses with minimal push force.

Trackability

Hydrophobic Guidewire Lumen Coating

A super-slippery hydrophobic lining inside the guidewire lumen minimises friction between catheter and wire — enabling precise, responsive tracking into severely angulated anatomy.

Why Gambit-NC

Built for Unyielding Lesions

Cardio-Elast NC Balloon

Proprietary Cardio-Elast non-compliant balloon maintains minimal diameter growth from nominal to RBP — delivering controlled, predictable sizing across the full pressure range.

High-Pressure Performance

12 atm nominal pressure with 22 atm RBP (2.0–4.0 mm) and 20 atm RBP (4.5–5.0 mm) for precise vessel sizing in calcified and resistant lesions.

11 Diameter Sizes

Complete range from 2.00 to 5.00 mm with eight balloon lengths (5–30 mm) — 88 individual combinations for every clinical scenario.

Proximal Shaft (Diameter)	1.9 F
Distal Shaft	2.7 F
Catheter Working Length	140 cm
Balloon Material	Nylon
Compliance	Cardio-Elast (Non-Compliant)
Marker Bands	2 markers
Coating	FW-COAT™ — Hydrophilic (shaft); Hydrophobic (guidewire lumen)
Nominal Pressure	12 atm
Rated Burst Pressure	22 atm (2.0–4.0 mm) · 20 atm (4.5 & 5.0 mm)
Guide Catheter Compat.	5 F (≤3.5 mm) · 6 F (≥3.75 mm)
Available Diameters	2.00 – 5.00 mm (11 sizes)
Available Lengths	5, 8, 10, 12, 15, 20, 25, 30 mm

Nominal (atm)

Standard working pressure for precise vessel sizing

RBP 2.0–4.0 mm

Maximum burst pressure for calcified lesions

RBP 4.5–5.0 mm

Large vessel rated burst pressure ceiling

Cardio-Elast Non-Compliance

Gambit-NC uses a proprietary Cardio-Elast NC balloon that maintains minimal diameter growth from nominal to RBP — delivering controlled, predictable sizing across the full pressure range with no guesswork.

Compliance Chart

Pressure (atm)	2.00	2.25	2.50	2.75	3.00	3.25	3.50	3.75	4.00	4.50	5.00
8 atm	1.94	2.18	2.42	2.65	2.88	3.14	3.30	3.01	3.95	4.25	4.76
10 atm	1.98	2.22	2.46	2.69	2.92	3.17	3.42	3.60	4.00	4.84	4.84
12 NOM*	2.00	2.25	2.50	2.75	3.00	3.25	3.50	3.75	4.00	4.50	5.00
14 atm	2.01	2.26	2.51	2.76	3.00	3.26	3.51	3.84	4.07	4.58	5.16
16 atm	2.04	2.30	2.56	2.81	3.07	3.33	3.60	3.88	4.10	4.64	5.16
18 atm	2.06	2.32	2.58	2.84	3.10	3.40	3.65	3.93	4.20	4.77	5.31
20 atm	2.08	2.35	2.61	2.88	3.14	3.43	3.60	3.93	4.20	4.84	5.37
20 RBP**	2.10	2.37	2.63	2.91	3.18	3.44	3.91	4.00	4.25	4.90	5.39
22 atm	2.12	2.39	2.65	2.93	3.21	3.48	3.74	4.03	4.30	—	—
22 RBP**	2.14	2.42	2.70	2.97	3.25	3.53	3.80	4.08	4.35	—	—

* Nominal Pressure (12 atm): In vitro device specifications; does not account for lesion resistance. ** Rated Burst Pressure: Do not exceed RBP — 22 atm for 2.0–4.0 mm; 20 atm for 4.5–5.0 mm.

Size Range

Available in 11 diameters from 2.00 to 5.00 mm and 8 balloon lengths — 5, 8, 10, 12, 15, 20, 25, and 30 mm — giving 88 individual combinations.

Reference Code Format

All codes follow the format FWNC-[diameter]-[length]-U. For example, FWNC-2510-U = 2.50 mm diameter, 10 mm length. All devices are single-use sterile.

Diameter (mm)	Length (mm)
Diameter (mm)	5	8	10	12	15	20	25	30
2.00	FWNC-2005-U	FWNC-2008-U	FWNC-2010-U	FWNC-2012-U	FWNC-2015-U	FWNC-2020-U	FWNC-2025-U	FWNC-2030-U
2.25	FWNC-2205-U	FWNC-2208-U	FWNC-2210-U	FWNC-2212-U	FWNC-2215-U	FWNC-2220-U	FWNC-2225-U	FWNC-2230-U
2.50	FWNC-2505-U	FWNC-2508-U	FWNC-2510-U	FWNC-2512-U	FWNC-2515-U	FWNC-2520-U	FWNC-2525-U	FWNC-2530-U
2.75	FWNC-2705-U	FWNC-2708-U	FWNC-2710-U	FWNC-2712-U	FWNC-2715-U	FWNC-2720-U	FWNC-2725-U	FWNC-2730-U
3.00	FWNC-3005-U	FWNC-3008-U	FWNC-3010-U	FWNC-3012-U	FWNC-3015-U	FWNC-3020-U	FWNC-3025-U	FWNC-3030-U
3.25	FWNC-3205-U	FWNC-3208-U	FWNC-3210-U	FWNC-3212-U	FWNC-3215-U	FWNC-3220-U	FWNC-3225-U	FWNC-3230-U
3.50	FWNC-3505-U	FWNC-3508-U	FWNC-3510-U	FWNC-3512-U	FWNC-3515-U	FWNC-3520-U	FWNC-3525-U	FWNC-3530-U
3.75	FWNC-3705-U	FWNC-3708-U	FWNC-3710-U	FWNC-3712-U	FWNC-3715-U	FWNC-3720-U	FWNC-3725-U	FWNC-3730-U
4.00	FWNC-4005-U	FWNC-4008-U	FWNC-4010-U	FWNC-4012-U	FWNC-4015-U	FWNC-4020-U	FWNC-4025-U	FWNC-4030-U
4.50	FWNC-4505-U	FWNC-4508-U	FWNC-4510-U	FWNC-4512-U	FWNC-4515-U	FWNC-4520-U	FWNC-4525-U	FWNC-4530-U
5.00	FWNC-5005-U	FWNC-5008-U	FWNC-5010-U	FWNC-5012-U	FWNC-5015-U	FWNC-5020-U	FWNC-5025-U	FWNC-5030-U

All products are single-use sterile. Compatible with 0.014" guidewires. One reference code per diameter/length combination.
