Semi-Compliant Dilatation · FDA SOON

Evolve-Pro
1.0–1.5 mm

Engineered to balance force transmission, navigation and predictable dilatation — without compromise. Designed for small-vessel coronary intervention across the 1.0–1.5 mm size range.

View Specifications Contact Us

Proximal Shaft 1.9 Fr

Nominal Pressure 6 atm

Burst Pressure 14 atm

Confidence where it matters the most

Evolve-Pro is designed to balance force transmission, navigation and predictable dilatation — without compromise.

Advanced Engineering

Precision Starts
at the Tip

The Evolve Pro small-size models feature an advanced Multi-layered tip design engineered for seamless performance. Its streamlined construction enhances flexibility and responsiveness, while the shortened tip improves trackability through challenging anatomy.

Multi-layered tip construction
Hydrophilic distal coating for smooth tracking
Rapid-exchange monorail design
Pebax semi-compliant balloon material

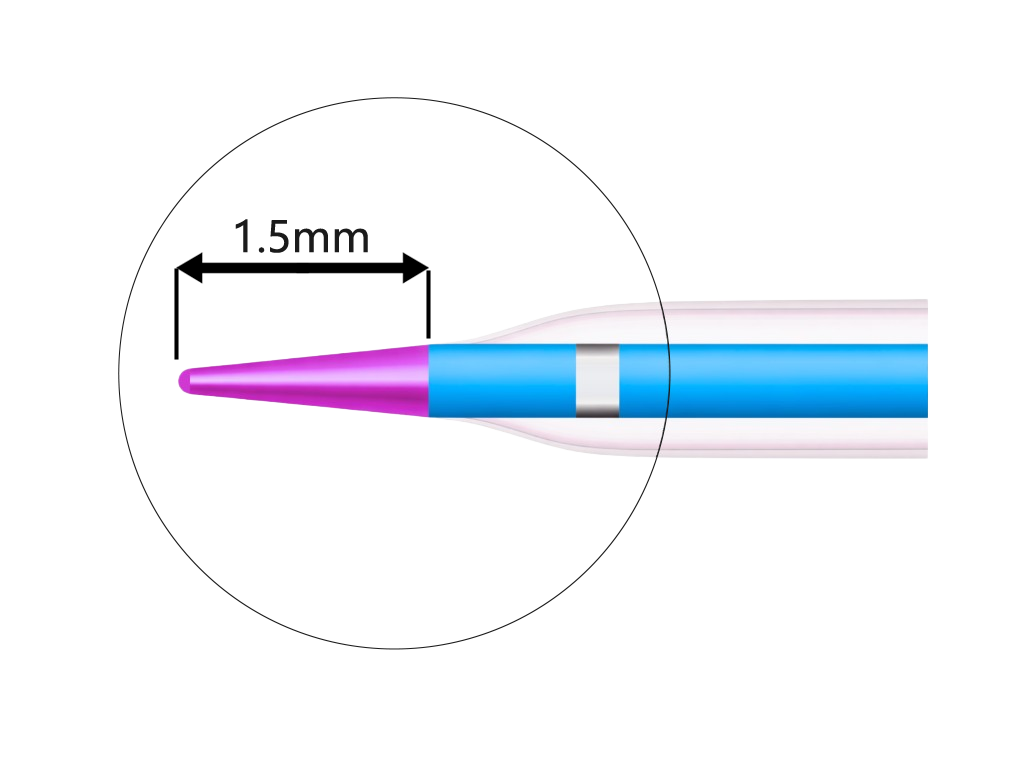

Evolve-Pro leading tip diagram — 1.5 mm shortened tip with distal shaft

1.5 mmShortened leading tip for superior trackability

Proprietary Technology

FW-COAT^™ Technology

A dual-mode coating system engineered for superior lesion crossing and frictionless guidewire tracking.

FW-COAT dual-mode coating — hydrophilic outer coat and hydrophobic guidewire lumen coat

Crossability

FW-Coat Hydrophilic Coating

Dramatically reduces friction during lesion crossing. The hydrophilic surface activates on contact with blood, creating a near-frictionless interface that allows the catheter to glide through even tight, calcified, or tortuous stenoses with minimal push force.

Trackability

Hydrophobic Guidewire Lumen Coating

A super-slippery hydrophobic lining inside the guidewire lumen minimises friction between catheter and wire during advancement. This ensures precise, responsive tracking into tight lesions while maintaining full pushability and torque transmission.

Why Evolve-Pro

Designed for Demanding Anatomy

Predictable Dilatation

Semi-compliant nylon balloon with 2–3 fold pleats ensures consistent, controlled dilation with precise radial force delivery at every pressure step.

Ultra-Low Profile

Proximal shaft at just 1.9 Fr and an advanced multi-layered tip provide exceptional crossing capability in severely calcified or tortuous lesions.

Dual-Mode Coating

Hydrophilic coating from distal tip to guidewire exit marker; hydrophobic coating on the guidewire lumen for optimal performance in complex interventions.

Proximal Shaft Diameter	1.9 F
Distal Shaft Diameter	2.36 F
Leading Tip Length	1.5 mm
Balloon Material	Nylon
Balloon Pleats	2 folds (ø1.0 mm); 3 folds (ø1.25 mm & 1.5 mm)
Compliance	Semi-compliant
Coating	Hydrophilic (distal tip to guidewire exit marker); Hydrophobic (guidewire lumen)
Marker Bands	1 marker
Nominal Pressure	6 atm
Rated Burst Pressure	14 atm
