Paclitaxel Eluting Balloon · DCB

FreeNova^®
DCB

Treat the Lesion. Leave Nothing Behind. Designed for navigation and predictable dilatation — with Paclitaxel delivered precisely where it matters.

View Specifications Contact Us

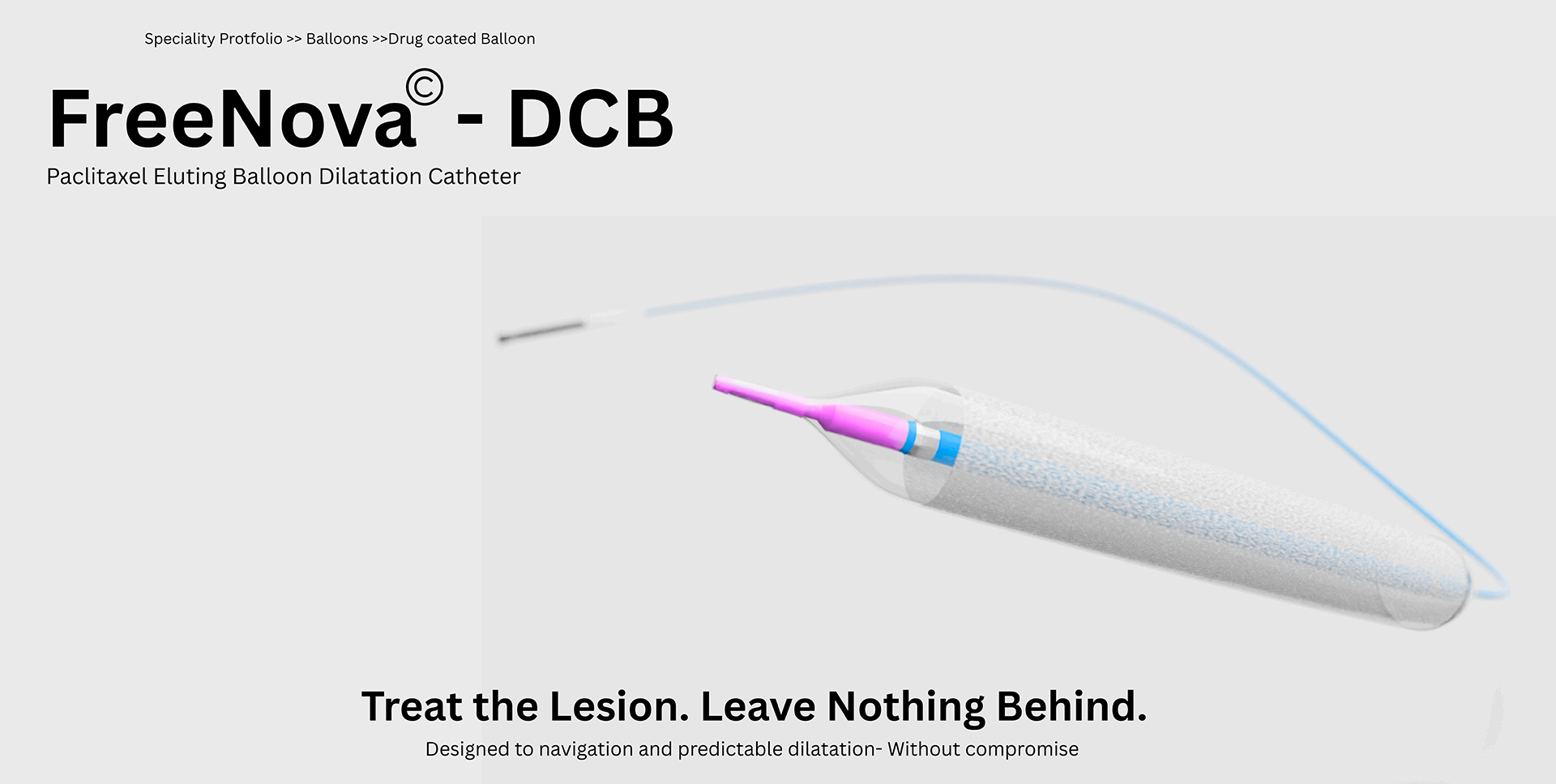

FreeNova-DEB paclitaxel eluting balloon catheter

Paclitaxel 3.0 µg/mm²

Entry Profile 0.0158"

Compliance SC / NC

Treat the Lesion. Leave Nothing Behind.

FreeNova DCB integrates drug delivery, balloon mechanics, and tip geometry into a single purpose-built catheter for stent-free intervention.

Proprietary Engineering

Three Pillars of Performance

FreeNova DCB integrates three independently engineered systems — drug delivery, balloon mechanics, and tip geometry — into a single, purpose-built catheter.

API — PTX Microparticles

Drug coating is more efficient and uniform via proprietary excipients. Conducive to a high transfer rate into the vessel wall.

SC & NC Balloon

Semi-compliant and non-compliant options in one platform. Very small passing diameter with excellent passability and push performance.

0.0158" Lowest Entry Profile

Outstanding crossability even in severely calcified, tortuous, or chronically occluded lesions that defeat conventional balloons.

PTX 3.0 µg/mm² Nylon Balloon 0.0158" Tip 2 Marker Bands

Why FreeNova DCB

Built for the Most Demanding Anatomy

Paclitaxel Precision

PTX microparticle coating at 3.0 µg/mm² with proprietary excipients ensures more efficient, uniform and stable drug delivery. High vascular transfer rate reduces restenosis risk.

SC & NC Versatility

Available in both semi-compliant (RBP 14 atm) and non-compliant (RBP 22 atm) configurations, covering the full spectrum from calcified to fibrotic lesion morphologies.

Ultra-Low Profile Tip

At 0.0158", the leading tip delivers outstanding crossability across chronic total occlusions and severely stenotic lesions where conventional balloons fail to advance.

PTX 3.0

Paclitaxel Drug Coating — 3.0 µg/mm²

FreeNova DCB delivers Paclitaxel via proprietary microparticle excipients, ensuring uniform distribution across the balloon surface and a higher active-drug transfer rate compared to conventional coating methods.

PTX Microparticles Uniform Coating Stable Formulation High Transfer Rate Proprietary Excipients

Catheter Type	Rapid Exchange
Working Length	140 cm
Tip Length	2.0 mm
Entry Profile	0.0158"
Balloon Material	Nylon
Balloon Folds	3
Compliance	Semi-Compliant / Non-Compliant
Marker Bands	2
Coating	Hydrophilic (Shaft); Hydrophobic (GW Lumen)
API	Paclitaxel 3.0 µg/mm²
Nominal Pressure	6 atm (SC)
Rated Burst Pressure — SC	14 atm
Rated Burst Pressure — NC	22 atm
Guide Catheter	5 F

Compliance Charts

Pressure (ATM)	2.00 mm	2.25 mm	2.50 mm	2.75 mm	3.00 mm	3.25 mm	3.50 mm	3.75 mm	4.00 mm
Nominal (6 atm)	2.00	2.25	2.50	2.75	3.00	3.25	3.50	3.75	4.00
RBP (14 atm)	2.26	2.53	2.79	3.07	3.38	3.64	3.90	4.23	4.48

* Nominal in vitro specifications do not account for lesion resistance. ** Do not exceed RBP. SC max: 14 atm.

Pressure (ATM)	2.00 mm	2.25 mm	2.50 mm	2.75 mm	3.00 mm	3.25 mm	3.50 mm	3.75 mm	4.00 mm
Nominal (12 atm)	2.00	2.25	2.50	2.75	3.00	3.25	3.50	3.75	4.00
RBP (22 atm)	2.26	2.53	2.79	3.07	3.38	3.64	3.90	4.23	4.48

* Nominal in vitro specifications do not account for lesion resistance. ** Do not exceed RBP. NC max: 22 atm.
